How Does TF-2402 DC Motor Enable 8-Speed Tower Fan Performance?

If you're looking for a tower fan that combines energy efficiency with smart features, the TF-2402 DC Motor Tower Fan deserves your attention. This isn't just another fan - it's a precision-engineered cooling system featuring 8-speed DC motor control, 120° wide-angle oscillation, and detachable cleaning components. Let's dive into what makes it special.

1. DC Motor Technology in TF-2402: How Does It Achieve 35W Power Efficiency with 8-Speed Control?

The brushless DC motor in TF-2402 uses PWM (Pulse Width Modulation) to deliver 8 precise speed settings (500-1500 RPM) while consuming only 35W at maximum output. Compared to traditional AC motors, this reduces energy consumption by up to 60% while maintaining quieter operation (<45dB).

Pro Tip: Use speeds 3-5 for daily cooling - this range provides the best balance between airflow and energy efficiency.

2. Airflow Dynamics: Engineering Behind TF-2402's 80°/120° Auto Oscillation Mechanism

A 3-phase stepper motor drives the oscillation system through a nylon-reinforced gearbox, allowing users to select either 80° (focused cooling) or 120° (wide area coverage) via the control panel. The mechanism includes overload protection that automatically disengages when obstruction is detected.

Pro Tip: For bedrooms, use 120° mode at night to distribute air evenly without direct airflow.

3. Multi-Mode Algorithm: How TF-2402's 5 Wind Settings Optimize Airflow

Each mode programs unique motor behavior patterns:

Mode	Speed Variation	Best For
ECO	Auto-adjusts	Energy saving
Natural	Random ±2 speeds	Mimic outdoor breeze
Sleep	Gradually slows	Nighttime use
Baby Soft Wind	Fixed low speed	Nurseries
Normal	User-selected	General cooling

Pro Tip: The "Natural" mode's algorithm avoids predictable patterns that can cause discomfort.

4. Detachable Wind Wheel System: Hygienic Design for Easy Cleaning

The tool-free release mechanism allows complete disassembly in 3 steps:

Press the latch buttons on both sides
Slide out the front grille
Lift away the ABS plastic wind wheel

The sealed bearing design prevents dust entry while allowing easy water rinsing.

Maintenance Tip: Clean every 2 months using mild soap - avoid high-pressure water near the motor shaft.

5. LED Touch Interface: Human-Machine Interaction Design

The projected capacitive touch panel features:

Moisture-resistant coating (works with wet hands)
Auto-dimming display (adjusts to ambient light)
Tactile feedback vibrations

UI Detail: The child lock icon blinks twice when activated for clear confirmation.

6. Smart Features Integration: Wi-Fi and Ionizer Options

The optional WiFi module (using ESP-07S chip) enables:

Voice control via Alexa/Google Assistant
Scheduled operation patterns
Energy usage monitoring

The ionizer generates 1.5 million anions/cm³ through needle-point discharge while keeping ozone output below 0.01ppm.

Installation Note: WiFi module installs in the dedicated compartment behind the control panel.

7. Child Lock Function: Safety Circuit Implementation

A three-layer protection system:

Touchscreen lock (hold for 3 seconds)
Remote control lock (dedicated button)
Physical button combo (Vol+ & Timer simultaneously)

The lock disables all controls except the power button.

8. Structural Engineering: Height Variations and Stability

Both models share the same polycarbonate base (5.2kg) with different shaft lengths:

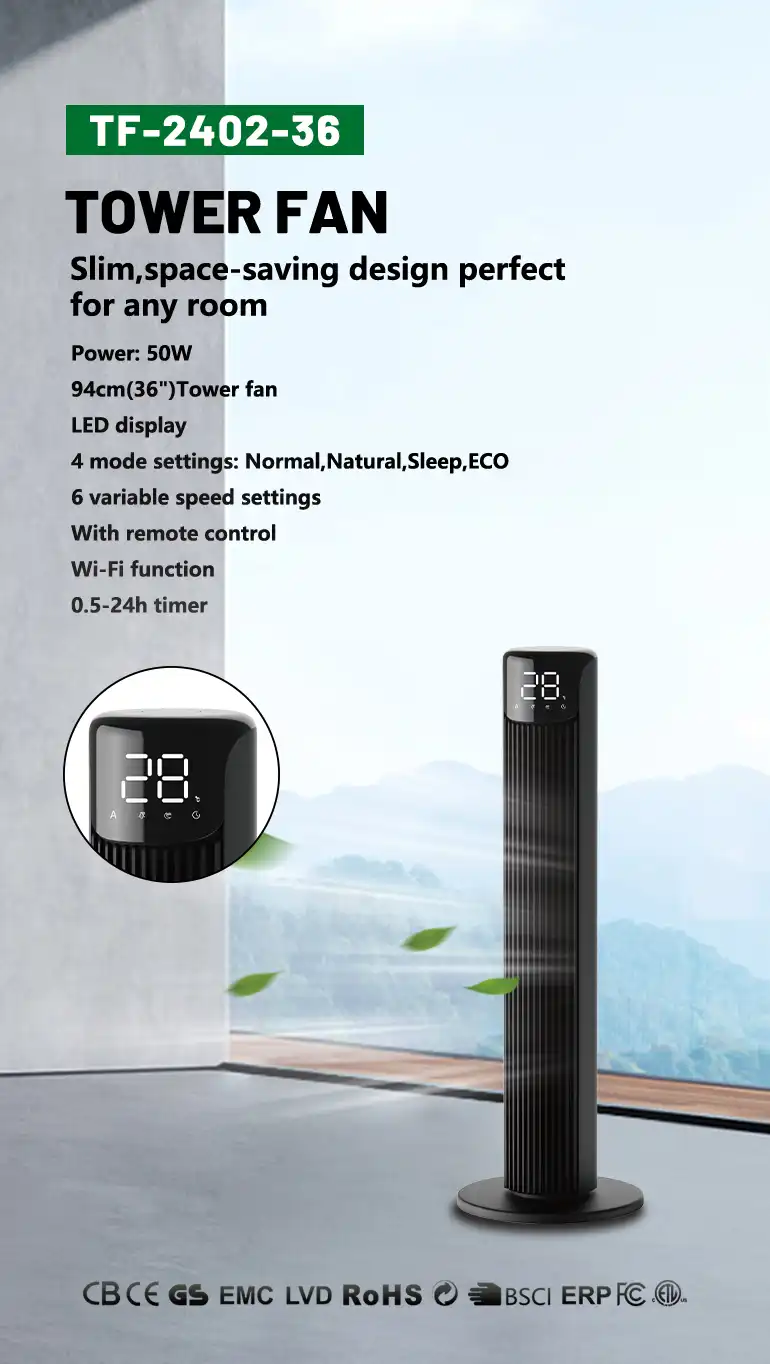

TF-2402-36D: 940mm height (36")

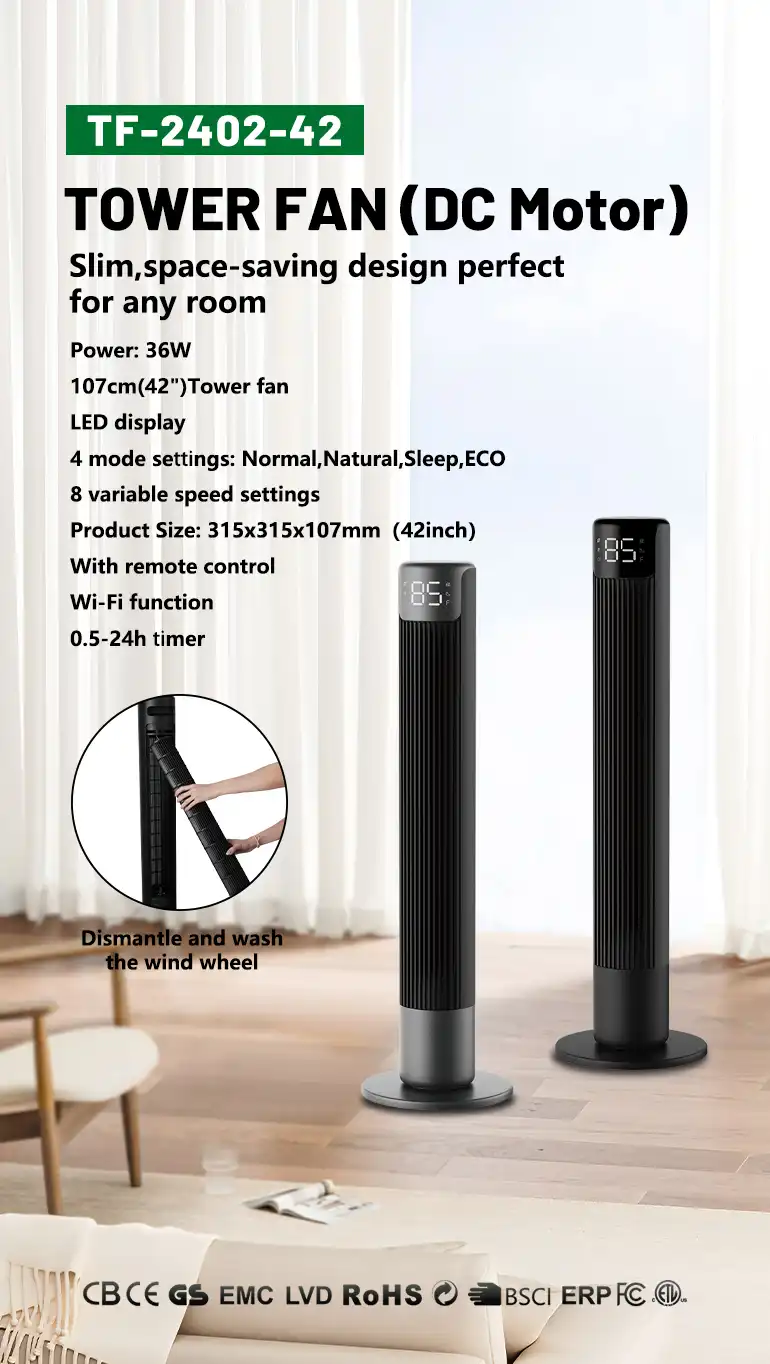

TF-2402-42D: 1070mm height (42")

The base's low center of gravity design prevents tipping even at maximum oscillation.

9. Thermal Management: 24H Continuous Operation

The motor incorporates:

Temperature sensors in windings
Automatic derating at >65°C
Ceramic-coated bearings for high heat resistance

Continuous Use Tip: Avoid blocking rear vents to maintain proper airflow.

Conclusion: Why TF-2402 Stands Out

By combining DC motor precision, innovative cleaning access, and smart-ready architecture, the TF-2402 series delivers professional-grade air circulation with consumer-friendly operation. The modular design also simplifies maintenance - a rarity in tower fans.

FAQ: TF-2402 Tower Fan

Q1: How often should I clean the wind wheel?
Every 2-3 months depending on dust levels. The LED will flash when airflow is restricted by 15%.

Q2: Can I use the fan without oscillation?
Yes. Press the oscillation button to toggle between 80°/120°/off.

Q3: WiFi disconnects frequently - solution?
Ensure your router uses 2.4GHz band (not 5GHz) and is within 10m line-of-sight.

Q4: Why does ECO mode sometimes change speeds?
It automatically adjusts based on room temperature fluctuations (±2°C trigger point).

Q5: Maximum recommended room size?
36D: 25m², 42D: 35m² when using 120° oscillation.
